Best Placement Main Module

Installation and placement of Main module !!

Before indstallation of the main module, be sure that you have access to 240V power. And if you have a WiFi module you will need to blink-up the WiFi SSID and password to a local WiFi netwok.

Look at the ThermIT Mobile App for instruction of the Blink-up. https://faq.thermit.eu/English%20User%20Guide/ThermIT_Mobile_App-english.pdf

And the Video https://youtu.be/YS2EVL5dPHk

• Place the main module as centrally as possible in the center of the radius for positioning the sensors
• Place the module as high as possible, it is OK to hang it upside down, for example in the ceiling.
• Do not hide the module above the ceiling or behind machines
• You can place the module on a shelf, or on a wall in a good height, if there are large metal hood boxes in the ceiling, then place the module below the hood level and work tables.
• Make sure that there is power to the module 24/7.
• Do not place the module closer than 30cm from power cords.

Also consider

The module receives sensor signals in a radius og 30 to 40m, if sensor signals do not come through the you might need a sensor repeater.

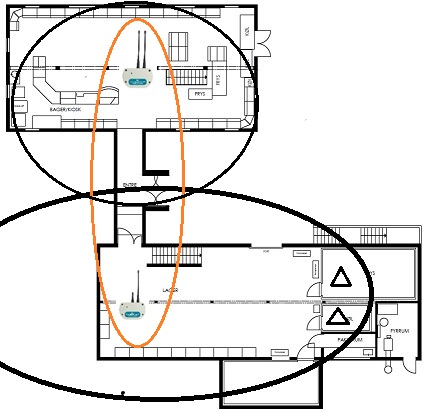

Example

One room with sensors and another room with other sensors. Place the main module in one of the 2 rooms, and place the reperater in the other room.
